| HOME > Product Profile > Pump Division > Booster pump | |
 |
|
 |
|
||||||||||||||||
■ Feature |
|||||||||||||||||
| - Minimum installation area as a vertical PUMP, this product requires a smaller installation area than horizontal pumps its easy installation saves construction time - Maximum efficiency its two-poled motor application maximizes efficiency and thus reduces power consumption drastically (by 50%) - M/SEAL application enabled being water-leakage free and easy maintenance - Maintained compatibility through uniformity and Standardization of parts - Two models are available: cast-iron based model and a model that has stainless steel parts for the water contacting sections |
|||||||||||||||||
■ Application |
|||||||||||||||||
| - Houses, Offices, Public buildings, Hospitals, Hotels, Department stores, the flow rate is irregularly changed and constant and accurate pressure is required |
|||||||||||||||||

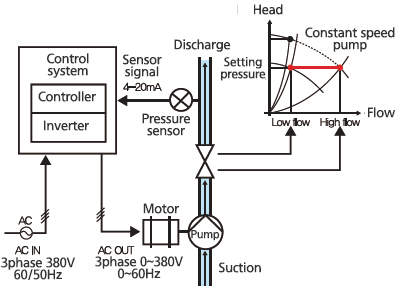

■ Operating system |
|||||||||||||||||
 Flow pipe pressure varies with the pressure sensor is required to detect the target as compared to the pressure control device Instructions to convert the number of revolutions of the pump being controlled in parallel, while at the same time the pump start / stop, thereby requiring the water way that caters pressure |
|||||||||||||||||

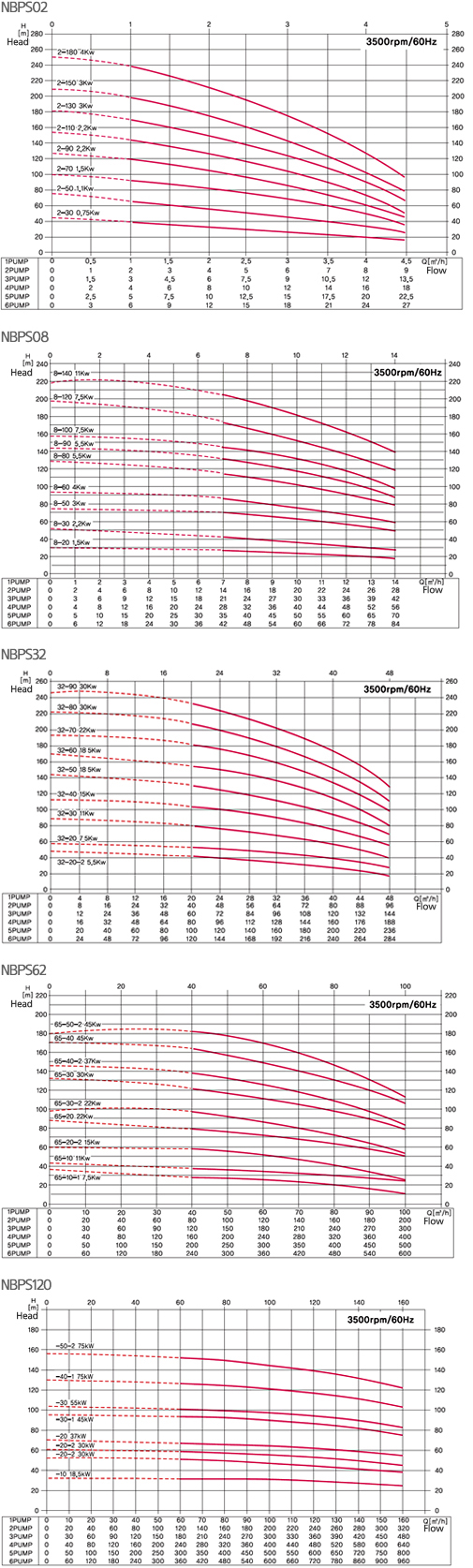

■ Selection chart |
|||||||||||||||||
 |
|||||||||||||||||
