Mixed Flow pump

■ Standard Spec
Capacity Max. 1000㎥/min
Total Head Max. 15m
Temperature Max. 40℃
Connection 350 ~ 2500mm

■ Feature
- Smaller size than centrifugal pumps requires smaller installation area, and saves foundation construction cost
- Little variation of water quantity under varying suction head, and little variation of power under varying water quantity
  are suitable for rainwater pumps and etc which are installed at places where water level varies a lot
- Less cavitation than in axial pumps, and larger suction head with the same head
- Possible to segmental operation, and the driving part including the motor is installed on the upper part, which eliminates
  concern about flooding damage

■ Application
- General industries, various factories : water intake, conveying and drainage
- Thermoelectric power plant : cooling water operation
- Steel mill : water circulation, drainage and for scale pits
- Sewage : inlet and discharge
- Water supply : water intake and conveying
- Agriculture : water pumping and drainage
- Others : dock drainage and stream drainage

■ Selection chart

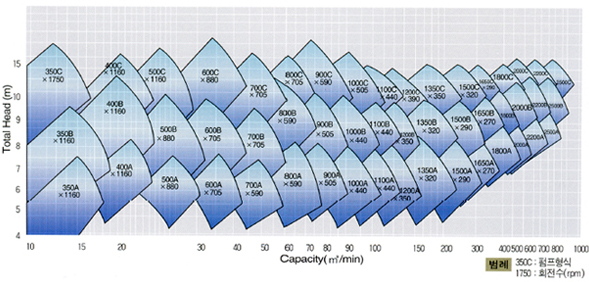

Selection chart

■ Section
Section

■ Dimension
Dimension
  PUMP(mm) PUMP BASE AND FOUNDATION(mm) MOTOR FOUNDATION(mm)
D A B E G Q(min) S(min) Y U W K-M I J UG WG XG YG MG JG IG
350 450 550 800 550 400 800 1170 700 1100 4-190 500 30 1200 1500 800 1570 130 30 315
400 500 600 850 600 450 900 1230 750 1150 4-190 630 30 1300 1600 850 1670 130 30 315
450 530 650 900 680 500 1000 1380 850 1300 6-190 630 40 1400 1700 900 1770 130 40 315
500 570 700 950 750 550 1100 1480 950 1400 6-190 630 40 1500 1800 950 1870 130 40 315
600 620 700 1220 850 650 1250 1700 1100 1600 8-220 800 40 1700 2100 1000 2170 150 40 400
700 730 850 1250 1000 750 1500 1800 1200 1700 8-220 800 50 1900 2300 1200 2370 150 50 400
800 815 950 1425 1100 850 1650 1900 1300 1800 8-220 800 50 2000 2500 1400 2600 190 50 630
900 880 1050 1450 1250 950 1850 2100 1500 2000 8-260 1000 50 2200 2700 1600 2800 190 50 630
1000 930 1150 1550 1450 1100 2150 2350 1700 2250 8-260 1000 50 2400 2900 1800 3000 190 50 630
1200 900 1150 1600 1650 1300 2650 2400 1800 2350 12-220 1000 50 2500 1800 600 3000 200 50 630
1350 1130 1100 1895 1750 1450 3050 2500 2100 2350 16-220 1000 50 2600 2000 600 3100 200 50 900
1500 1550 1350 2400 1800 1600 3650 2700 2100 2500 16-260 1000 50 2700 2100 700 3300 220 50 900
1650 2350 1500 2600 2300 1650 4125 3500 2900 3400 16-260 1000 50 2900 2300 800 3500 260 50 900
1800 2700 1700 2800 2500 1800 4500 3700 3100 3600 16-260 1000 50 3100 2500 900 3700 260 50 900
2000 3000 1800 3000 2800 2000 5000 3950 3300 3850 16-260 1000 50 3300 2700 1000 3400 260 50 1200
2200 3300 1900 3200 3100 2200 5500 4100 3500 4000 16-260 1000 50 3500 2900 1100 4100 260 50 1200
2500 3700 2100 3400 3500 2500 6250 4200 3700 4200 16-260 1000 50 3700 3100 1200 4300 260 50 1200
