Hose pump

■ Standard Spec
Capacity Max. 70㎥/min
Total Head Max. 70m
Temperature Max. 100℃
Revolution Max. 70rpm
press 2bar

■ Feature
- No contamination between the pump and fluid
- Complete self-primming type
- Dry running is possible without damaging the pump
- Don't need to valve and seal
- Smooth operation of the pump is suitable for pumping deformation-sensitive materials
- When power is off, the pump itself plays the role of check valve (prevention of backdraft)

■ Application

- Transferring of high-viscosity sludge and various salted fish
- Waste oil of waste treatment plants
- Filling of mud, Pulp, Ink and Cement mortar, Water-collection tanks of cooling towers
- Pumping of excrement
- Pumping of high-viscosity liquids which are hard to be transferred with general pumps or which require strong
  suction or other general industries

■ Selection chart

Selection chart

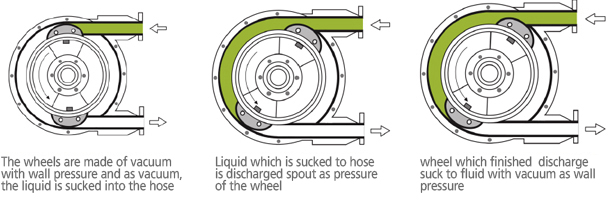

■ Principle
How it works
