HOME > Product Profile > Pump Division > Submersible pump

■ Standard Spec

Capacity	Max. 1.8㎥/min
Total Head	Max. 58m
Temperature	Max. 40℃
Revolution	3540rpm
Rotation	CW (Clckwise viewed from coupling end)
Bearing Lubrication	Oil Bath Type
Connection	50 ~ 150mm

■ Feature

- Completely sealed submersible motor type by means of mechanical seal, it offers high reliability and needs a small
installation space
- As a type directly connected to motor, it is easy to carry and install
- By means of automatic disassembly and assembly apparatus, the maintenance repair is easy without disassembly
of piping

■ Application

- Take sand	- Drainage of Apartment Complex	- Drainage of Underground markets
- Construction	- Drainage Subway station	- Drainage of polluted water from other high-head places

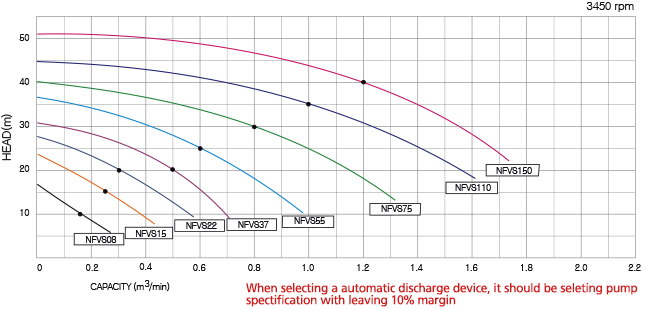

■ Selection chart

■ Section

■ Dimension

MODEL	A	B	C	D	ΦE	F	H	L
NFVS08	420	309	111	231	221	190	389	145
NFVS15	420	309	111	231	221	190	416	145
NFVS22	470	350	120	257	240	222	430	165
NFVS37	470	350	120	257	240	222	460	165
NFVS55	515	389	123	296	245	241	560	210
NFVS75	534	411	123	306	245	266	615	210
NFVS110	620	460	170	330	360	300	895	240
NFVS150	620	460	170	330	360	300	895	240
